Insignia die cutters are offered in 4 sizes:
Sheet size capacity:
Insignia5: 15 x 20" / 38x51 cm max.
Insignia6: 20 x 20" / 51x51cm max.
Insignia7: 24 x 30" / 61x76cm max.
InsigniaX3: 24 x 24" / 61x61cm max.
Insignia machines weigh between 3,000 - 5,500lbs depending on size of machine (die cutting section only). The machines are built with 1.5-2.5" (38-64mm) thick solid side-frames to house the cylinder section and support the cutting station.

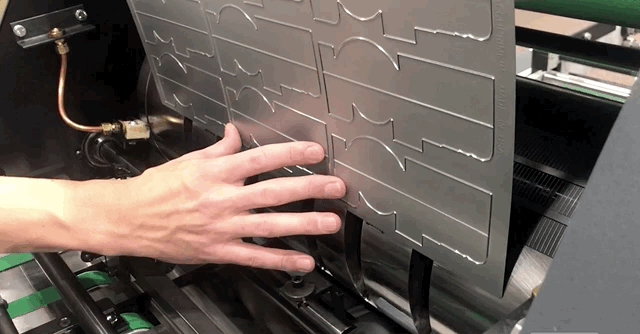

When die cutting materials of density, tremendous forces are required to withstand the pressures needed to die cut all the way through the substrate. This is why the Insignia machines are capable of applying up to 3,000lbs of downward force directly to the cutting station to ensure the flexible dies can cut through whatever it is being asked to do.
The Insignia machines are built 100% in the USA using American sourced components.
